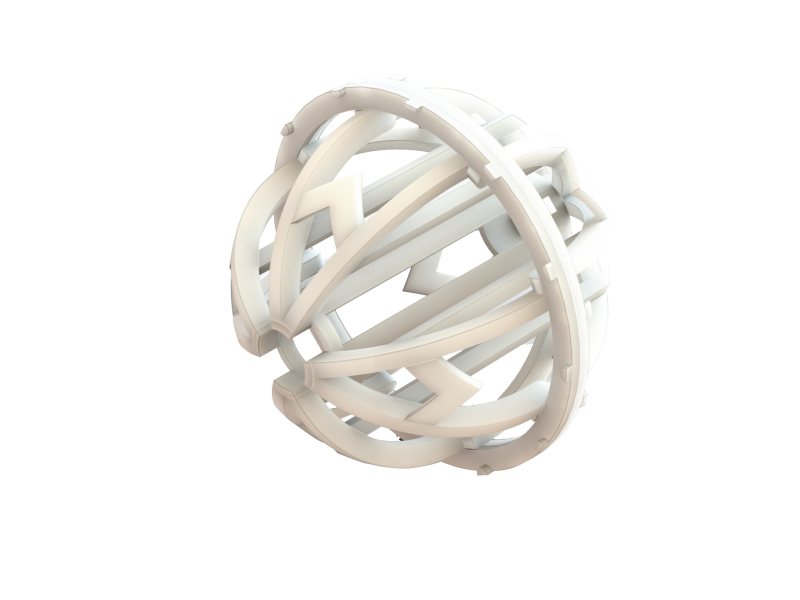

The random packing 3-Pack® present a “quasi-spherical” geometry, designed to maximize the specific interfacial area in towers and columns of gas absorption or desorption.
Its shape offers an excellent surface area and a constant renewal of the liquid film, maximizing the global mass transfer coefficient by 20-30% when compared to 1st and 2nd generation plastic rings (Raschig Rings and Pall Rings). In addition, there is a 20-30% decrease in head loss when compared to conventional fillings.
How's it works?
Since it has practically no straight corners or points where liquids or solids can accumulate, it has an excellent performance in systems such as washing towers and strippers, in addition to good chemical resistance.
Towers packaged with a random 3-Pack® packing, when compared to other fillings, exhibit greater mass transfer efficiency for the same head loss, allowing the towers designed to use the 3-Pack® to have diameters 20 to 30% smaller and / or use lower total volumes of fillings and / or consume less energy than towers designed with less current technologies.

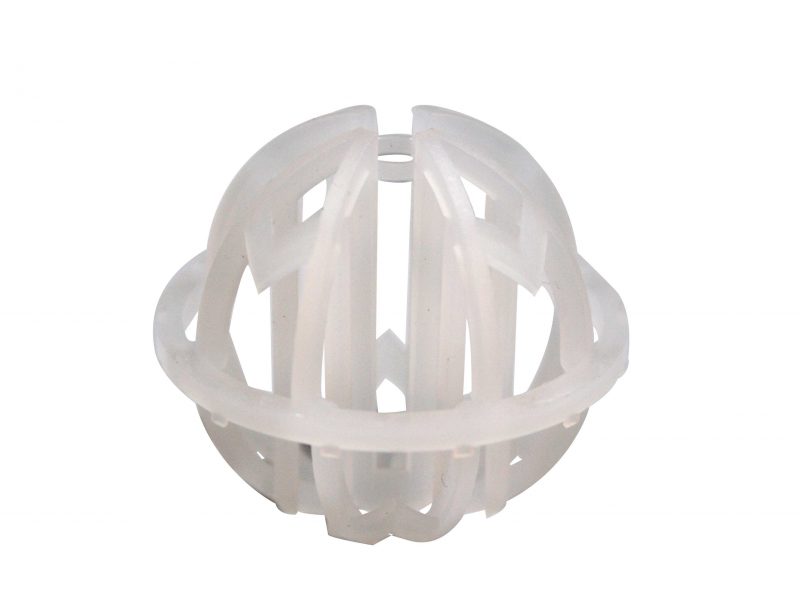

In addition, the 3-Pack® has manufacturing options in several polymers, they are sized and manufactured according to the operational conditions of the project.
- Greater tolerance to fouling than fillings from previous generations;
- Capacity increase or volume reduction;
- Reduction in energy consumption.
- CO2 column in the sugar and alcohol industry;
- Industrial drying tower and chlorine and soda;
- Gas scrubbers from industrial incinerators.
MaxiDur® random packings have a high density, greater than 2.25 kg / L, making them used as a catalyst support, in order to keep the catalytic beds in position even under extreme gas flows / speeds.
MaxiRing® random packing increase the efficiency of mass transfer in absorption and desorption processes.
The random packing MaxiSaddles® BPC (MaxiSaddle Low pressure drop) is the newest generation belonging to the MaxiSaddles ceramic saddle group. Its modern design features a greater number of gas passage points, increasing efficiency and decreasing pressure loss, making it ideal for process revamp.
(Português BR) MaxiSaddles® random packing are widely used in the chemical industry, to promote mass transfer between highly corrosive substances, where it is not possible to use plastic and metallic fillings.
The random packing CMTP® seeks to associate high capacity with excellent mass transfer efficiency, promoting, also, a low pressure loss through its geometry. CMTP® is manufactured in an extensive range of metal alloys such as 410, 304, 316 and 317.
